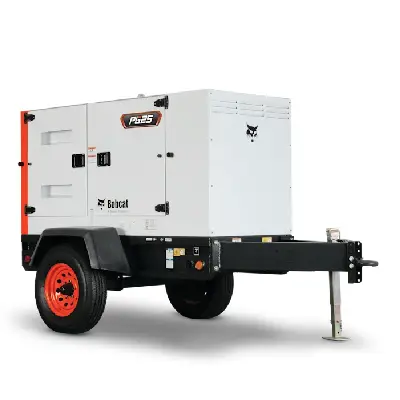

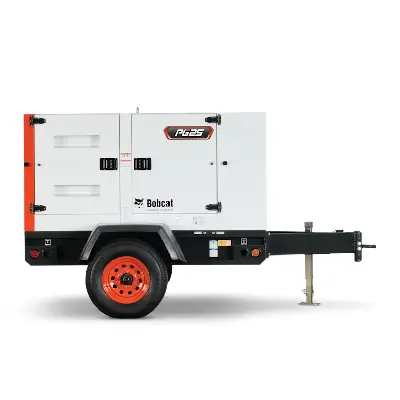

The Bobcat PG25 portable generator gives you dependable power in an impressively compact design that’s capable of handling the toughest jobsite conditions.
Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.
(866) 888 6111
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
Delivers 25 kVA (20 kW) at a quiet 63 dB(A)
Easy-to-read analog gauges for quick performance monitoring
25-hour maximum runtime at 100% load
User-friendly control panel
Ideal for events, emergency backup power and construction sites
| Weight | 3060 lbs |
|---|---|
| Dimensions | 130.5 × 68.3 × 76.6 in |
| Manufacturer | Bobcat / Doosan |
| MPN | PG25 |
| Capability | Sell, Service |
| Cooling System | Liquid Cooled |
| Frequency Hz | 50/60 |
| Fuel Tank Run Time (hrs) | 20 |
| Fuel Type | Diesel |
| Manufacturers Website Link | https://www.bobcat.com/na/en/equipment/portable-power/portable-generators/pg25 |
| Product Applications | Commercial / Industrial Power, Hurricane and Storms |
| Gen/Power Rating | Prime / Continuous |
| Housing | Closed |
| kW | 20 |
| Phase AC | Varies |
| Power Type | Conventional |
| Product Actual Height (in) | 76.6 |
| Product Actual Length (in) | 130.5 |
| Product Actual Weight (lbs) | 3060 |
| Product Actual Width (in) | 68.3 |
| Voltage VAC | Varies |
| Fuel Tank Size (gal) | 47 |
| Rated Amps | 83 |
| Watts | 20000 |
| kVA | 25 |
| VA | 25000 |
PRIME POWER RATING
| @ 480V-3Ø, 0.8PF, 60Hz | 25 kVA (20 kW ), 30 Amps |
| @ 240V-3Ø, 0.8PF, 60Hz | 25 kVA (20 kW ), 60 Amps |
| @ 208V-3Ø, 0.8PF, 60Hz | 22 kVA (17 kW ), 61 Amps |
| @ 240V-1Ø, 1.0PF, 60Hz | 16.5 kVA (16.5 kW ), 69 Amps |
| @ 120V-1Ø, 1.0PF, 60Hz | 16.5 kVA (16.5 kW ), 69×2 Amps |
| Voltage Configuration | 3-Position Switch |
| Frequency Capability | 50Hz/60Hz Switchable |
ENGINE
| Engine Make / Model | Doosan D18 |
| Power Output @ 1800RPM – HP (kWm) | 33.5 (25) |
| Emissions Tier Level | Tier 4 Final |
| Fuel Tank Capacity – Gal (L) | 47 (177) |
| Runtime @ 100% Load – Hr | 25.9 |
DIMENSIONS WITH RUNNING GEAR
| Length – in (mm) | 130.5 (3315) |
| Width – in (mm) | 72.8 (1850) |
| Height – in (mm) | 76.6 (1946) |
| Weight (Ready to Run) – lb (kg) | 3140 (1424) |
| Sound Level @ 23 ft (7m) and 100% Load – dB(A) | 63 |
Backup power for your life.
