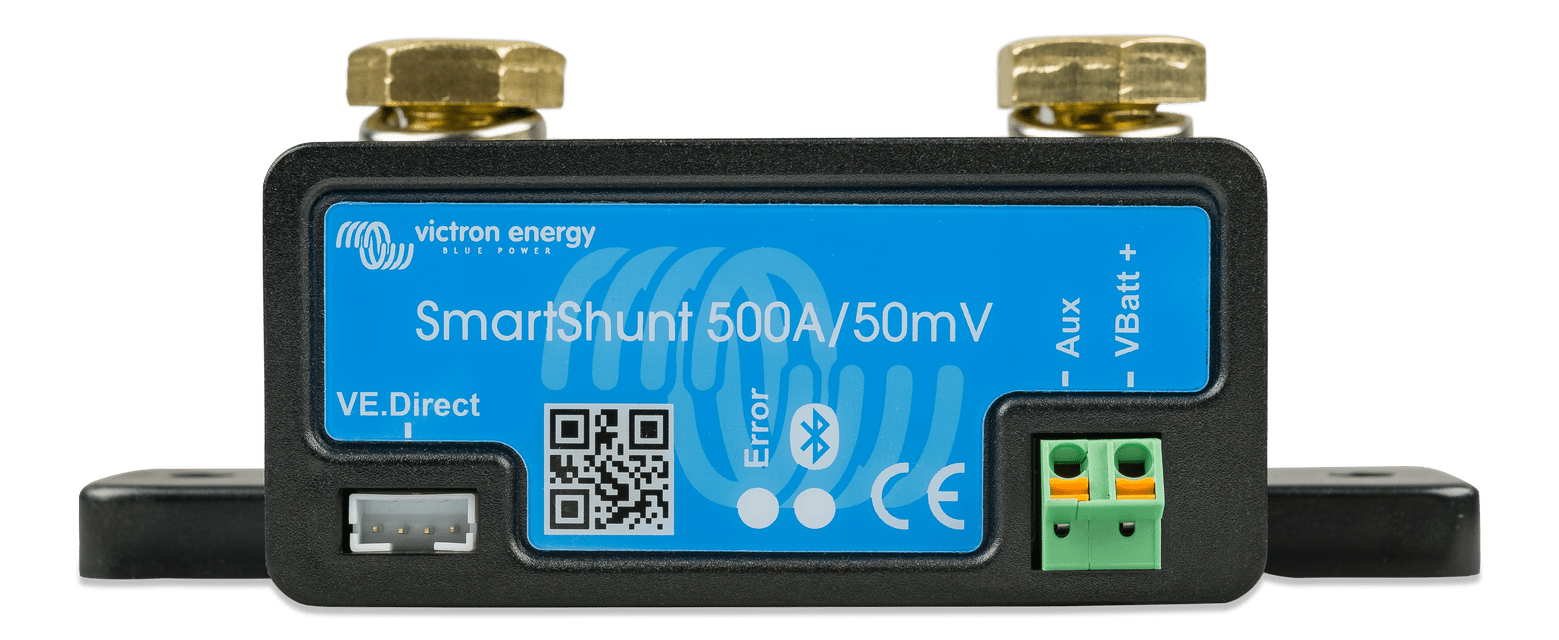

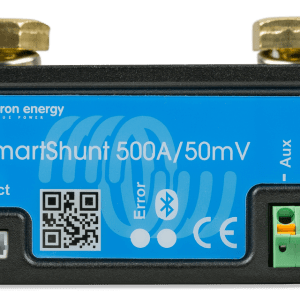

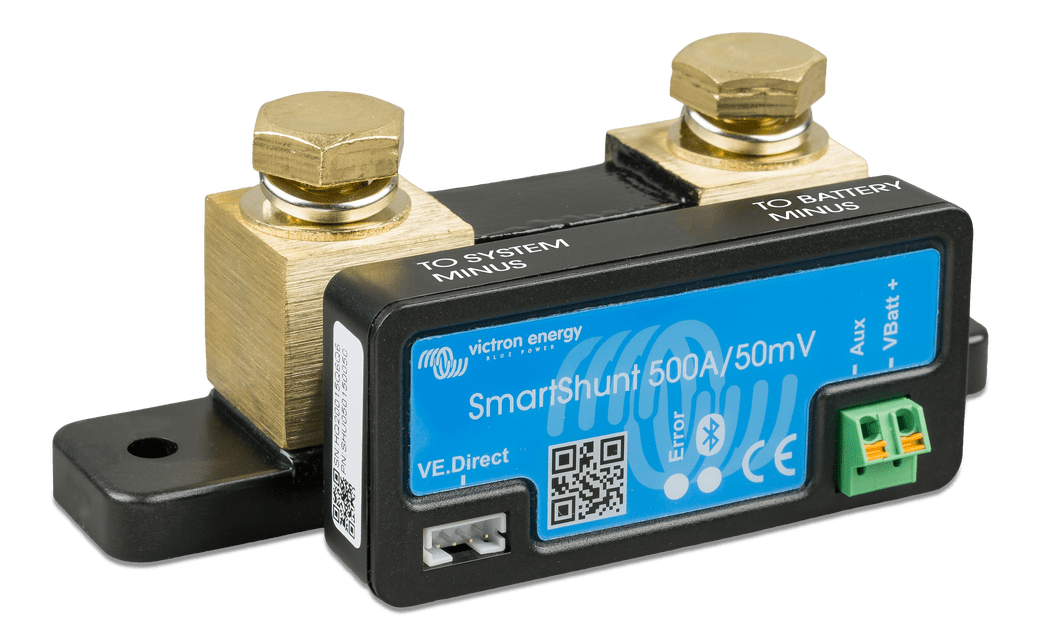

Victron Energy SmartShunt 500A/50mV SHU050150050

Victron SmartShunt 500A/50mV

The Smart Battery Shunt

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

FREE SHIPPING OVER $500

In stock

$100.30

In stock

Compare

Favorite

Added

questions? Call US

(866) 888 6111

SKU: 301921 Category: Battery Monitors / Management

Accessories

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Description

Victron SmartShunt 500A/50mV

The Smart Battery Shunt

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Additional information

Weight	0.82 lbs
Dimensions	3 × 5.3 × 3.3 in
Product Applications	Off-Grid, RV / Food Truck / Mobile
Capability	Install, Sell, Service
Certification	CE
Manufacturer	Victron
MPN	SHU050150050
Power Type	Energy Storage
kW	251-500
Voltage VDC	Variable

Reviews

There are no reviews yet.

Be the first to review “Victron Energy SmartShunt 500A/50mV SHU050150050”

Downloads

Victron SmartShunt 500A/50mV Spec Sheet

Tech Notes

Models:

500A

Supply voltage range	6,5 – 70 VDC
Current draw	< 1mA
Input voltage range, auxiliary battery	6,5 – 70 VDC
Battery capacity (Ah)	1 – 9999 Ah
Battery-connection	M8 bolts
Operating temperature range	-40 +50°C (-40 – 120°F)
Dimensions (h x w x d)	500A: 46 x 120 x 54 mm
Protection category	IP21
