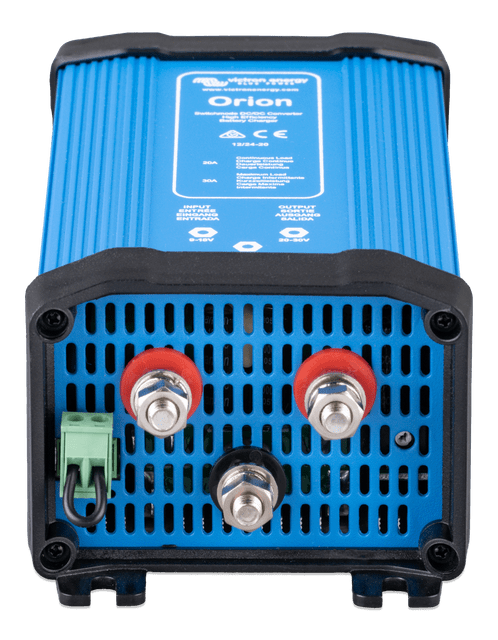

Image of Victron Energy Orion 12/24-20 DC-DC converter IP20 ORI122420020

Sell

Service

install

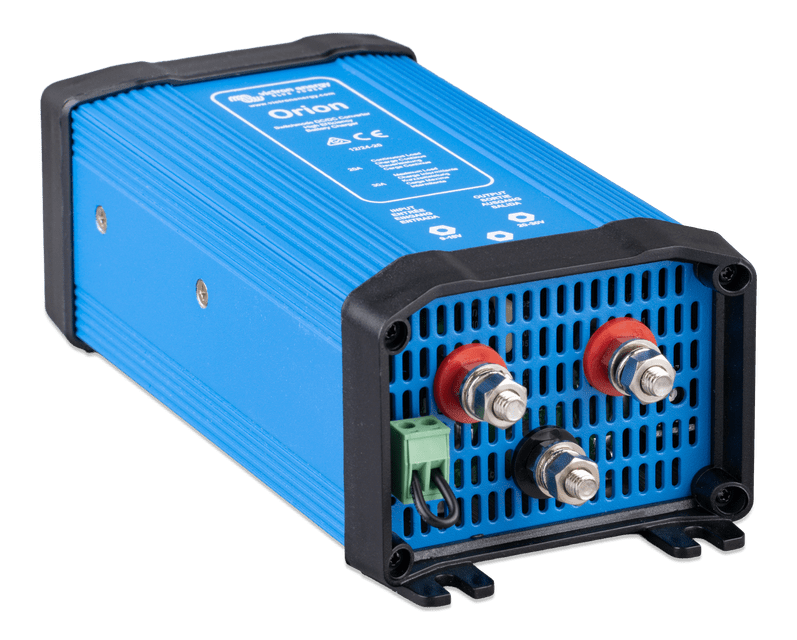

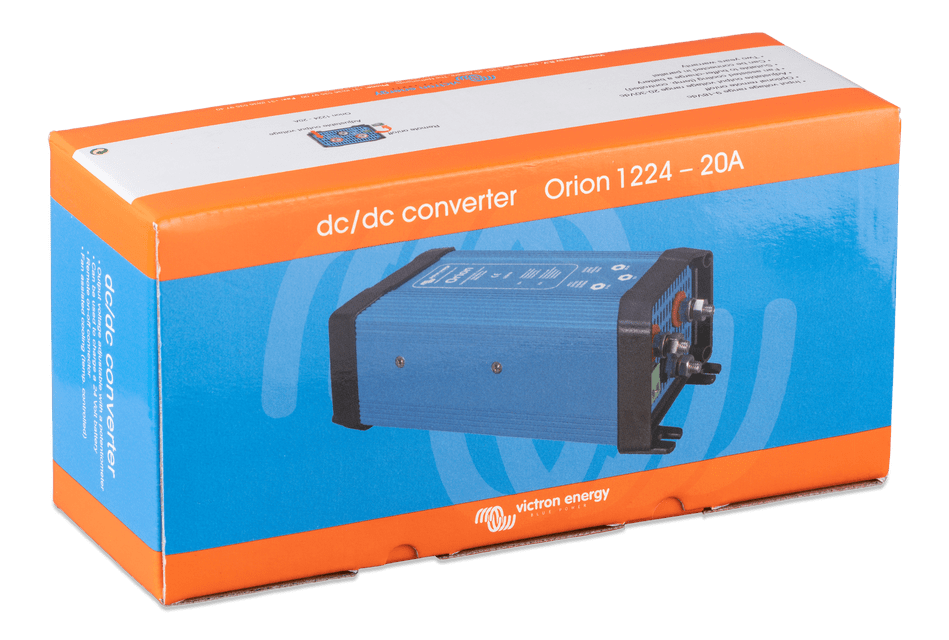

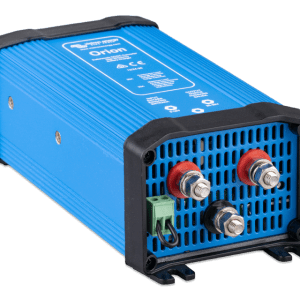

Victron Energy Orion 12/24-20 DC-DC converter IP20 ORI122420020

Victron Orion 12/24-20 DC-DC converter IP20

Orion DC-DC Converters Non-isolated, High power

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.

FREE SHIPPING OVER $500

Ships Factory Direct

$140.25

Compare

Favorite

Added

questions? Call US

(866) 888 6111

SKU: 303821 Category: DC-DC Converters

Accessories

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Description

Victron Orion 12/24-20 DC-DC converter IP20

Orion DC-DC Converters Non-isolated, High power

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.

Additional information

Weight	2.32 lbs
Dimensions	3.1 × 9.1 × 4.3 in
Manufacturer	Victron
Capability	Install, Sell, Service
MPN	ORI122420020
Product Applications	Off-Grid, RV / Food Truck / Mobile

Reviews

There are no reviews yet.

Be the first to review “Victron Energy Orion 12/24-20 DC-DC converter IP20 ORI122420020”

Downloads

Victron Orion 12/24-20 DC-DC converter IP20 Spec Sheet

Tech Notes

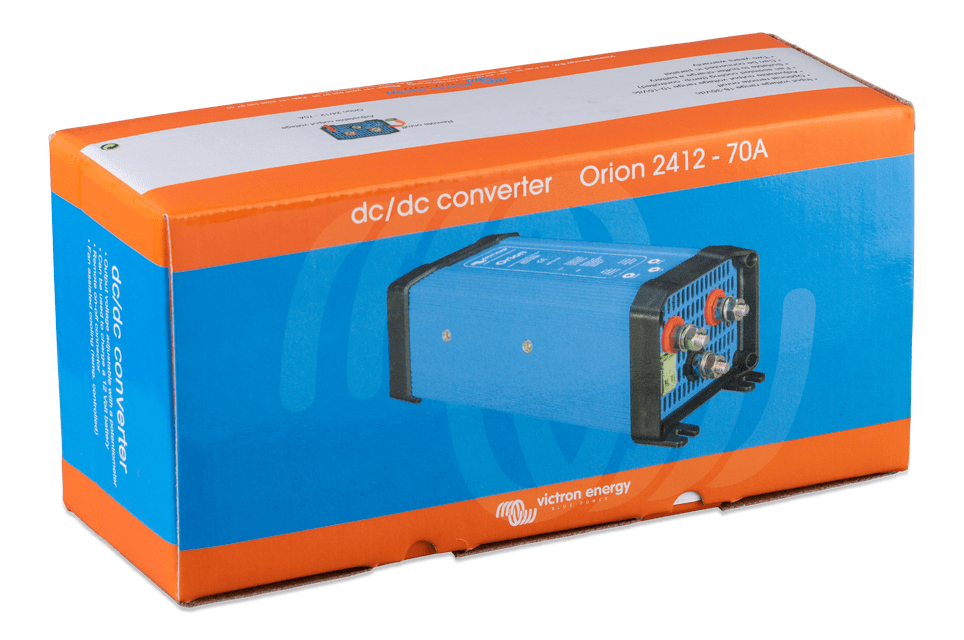

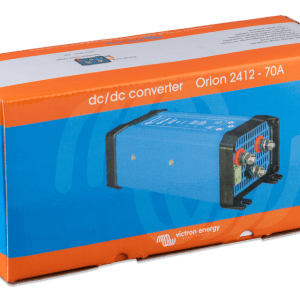

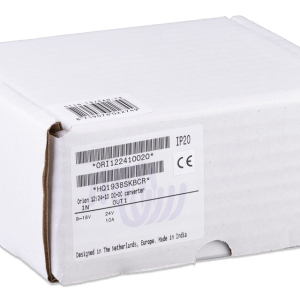

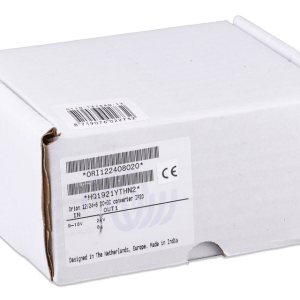

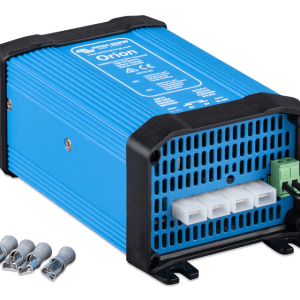

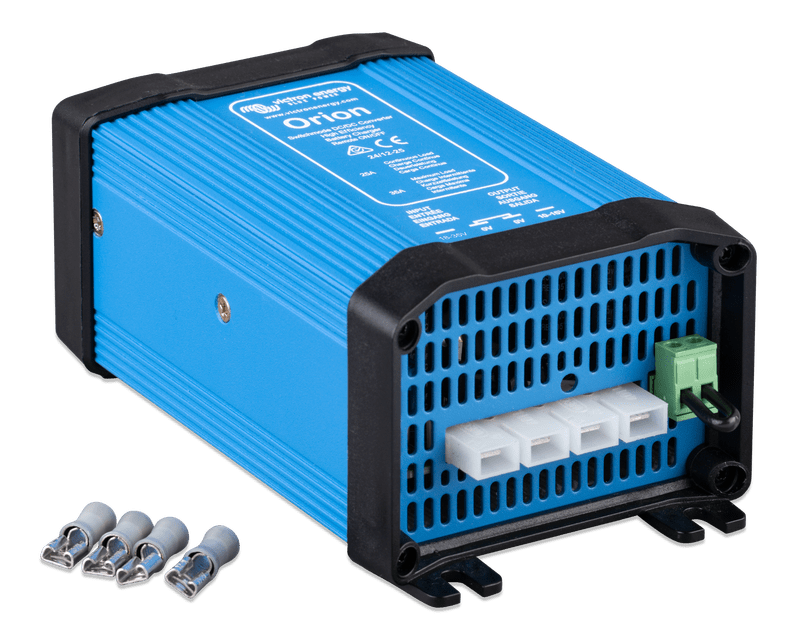

Non isolated converters	Orion 24/12-25	Orion 24/12-40	Orion 24/12-70	Orion 12/24-8	Orion 12/24-10	Orion 12/24-20
Input voltage range (V)	18-35	18-35	18-35	9-18	9-18	9-18
Under voltage shutdown (V)	14	14	14	8	8	8
Under voltage restart (V)	18	18	18	10	10	10
Output voltage adjustable with potentiometer	yes	no	yes	no	yes	yes
Weight kg (lbs)	0,7 (1.55)	0,85 (1.9)	0,9 (2.0)	0,4 (0.8)	0,4 (0.9)	0,9 (2.0)
Dimensions hxwxd in mm (hxwxd in inches)	65x88x160 (2.6×3.5×6.3)	65x88x185 (2.6×3.5×7.3)	65x88x195 (2.6×3.5×7.7)	45x90x115 (1.8×3.5×4.5)	45x90x125 (1.8×3.5×4,5)	65x88x195 (2.6×3.5×7.7)
