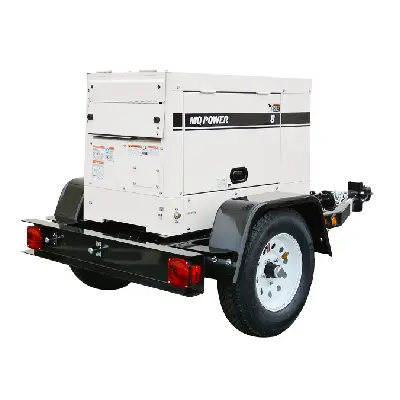

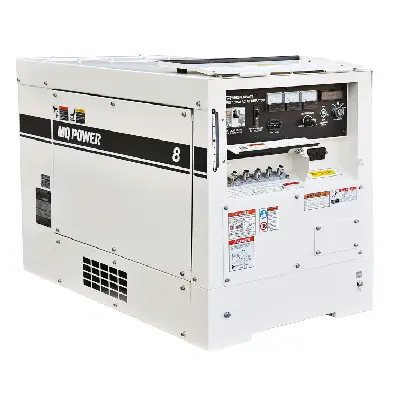

MQ WhisperWatt Super-Silent Diesel Generator 6kW Three Phase Kubota Engine TLG8SSK4F2

The TLG8SSK4F2 is a 7.5 kVA Three phase generator with a 0.8 power factor, 208/240-volt output and has a 2-pole field.

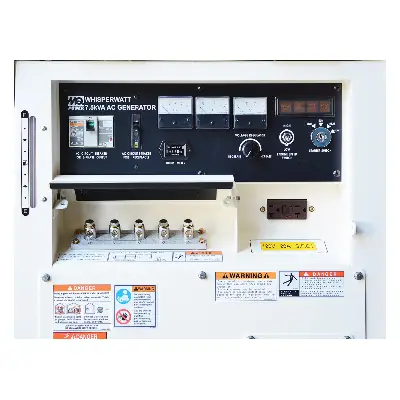

It features a mechanical governor that maintains a steady state 60 Hz within 0.25% from no load to full load. Its comprehensive analog control panel includes instruments such as an amperage, frequency, voltage, and hour meters along with a Main circuit breaker. At 646 lb. (293 kg), the TLG8SSK4F2 is the lightest model in the series of three phase Whisper Watt Super-Silent Generators.

The TLG8SSK4F2 series generator is designed to handle the toughest applications in the most extreme environments with remarkable results. This model is available with a magnitude of options which assist in making this the perfect choice for any job site requirements.

• Heavy-duty, 4-cycle, liquid-cooled, diesel engine —Provides maximum
• EPA emissions certified Tier 4 Final emissions

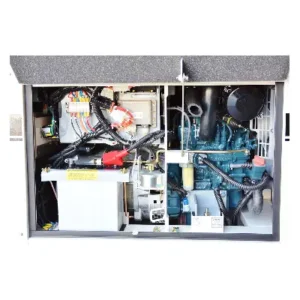

• Single-side Maintenance Design—Quick, direct access to all External fluid drain extensions allow fast, easy service. Ideal for Ground Heater applications and confined areas.
• Automatic safety shutdown system — Monitors low oil pressure, high water temperature and battery charge via warning lamp display
• Automatic voltage regulator (AVR) — Provides precise Power is controlled within ±1% of mean voltage.
• Full load acceptance of standby nameplate rating in a single
• Sound attenuated, weather resistant, steel housing provides operation at 64 dB(A) at 23 Fully lockable enclosure allows safe unattended operation.
• E-coat and powder coat paint provides durability and weather
• Brushless alternator reduces service and maintenance requirements and meets temperature rise standards for Class F insulation
• Fully covered power Three-phase terminals and single phase GFCI receptacle allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. All are NEMA standard.
• Complete generator instrumentation — Includes a 2-pole GFCI circuit breaker, AC voltmeter, AC ammeter, frequency meter, voltage regulator, hour meter, idle control switch, warning lamp display, and ignition
• Excellent voltage regulation — Power is controlled within

±0.5% of mean voltage. Self-regulated.
