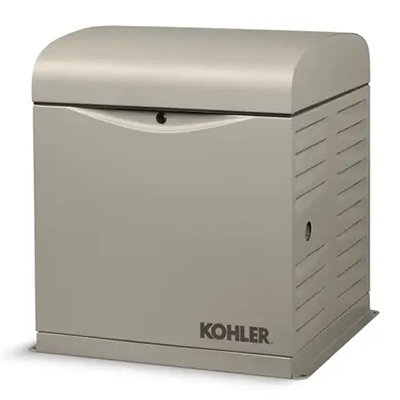

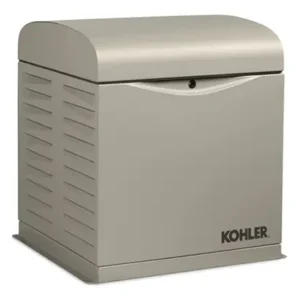

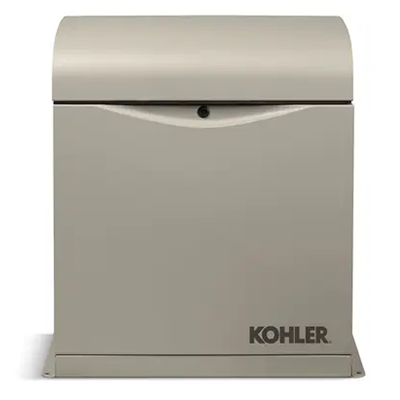

Kohler Home Generator 10RESV, 1 PH, 240V, cUL/US, CSA LCB (Amp) 50 Home Generator 10RESV-QS8

FREE SHIPPING & LIFTGATE

$3,475.00

(866) 888 6111

SKU: 300267 Category: Home Standby / Small Business

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Kohler 10RESV, 1 PH, 240V, cUL/US, CSA LCB (Amp) 50

Manufacturer	Kohler
MPN	10RESV-QS8
Capability	Install, Sell, Service
Cooling System	Air Cooled
Certification	UL
Frequency Hz	60
Fuel Type	Dual Fuel (NG/LP)
Manufacturers Website Link	https://homeenergy.kohlerenergy.com/en/products/home+generators/10resv
Product Applications	Commercial / Industrial Power, Residential
Gen/Power Rating	Standby / Intermittent
Housing	Closed
kW	10
Main Line Circuit Breaker Size MCB (Amps)	50
Phase AC	1PH
Power Type	Conventional
Voltage VAC	120/240
Voltage VDC	12
Watts	10000

There are no reviews yet.

Be the first to review “Kohler Home Generator 10RESV, 1 PH, 240V, cUL/US, CSA LCB (Amp) 50 Home Generator 10RESV-QS8”

Rated kW LP	10 kW
Rated kW NG	9 kW
Amps LP	41.7 amps
Amps NG	37.5 amps
Peak Motor Starting kVA @240 V	16.8 kVa
Alternator Note	All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement	725 cm3 (44 cu. in.)
Horsepower	NG 18 HP, LP 21.4 HP
Enclosure Material	Steel
Sound Output During Weekly Exercise	67 dB(A)
Sound Output During Full-speed Operation	71 dB(A)
Response Time	10 seconds
Warranty	Premium five-year limited warranty
Country of Origin	US
Certifications/Listings	EPA\|CSA\|UL 2200\|cUL
Automatic Transfer Switch Included	No
Remote Monitoring Available	Included
Off Grid / Utility Backup	Utility Backup
Weight	428 lbs.
Alternator Type	2-Pole, Rotating Field
Fuel Consumption on NG at 50% load?	120 cfh
Fuel Consumption on LP at 50% load?	52 cfh
Controller	RDC2 Digital Controller
Cylinder Arrangement	V-2
Dimensions	777mm x 712mm x 824mm (30.6 in. x 28 in. x 32.4 in.)
Engine Manufacturer/Description	KOHLER
Engine Model	KT725
Engine/Alternator RPM	3600
Fuel Type	LPG\|Natural Gas
Frequency	60 Hz
Phase	Single Phase
Voltage @ 60 Hz	120/240
Digital Voltage Regulation	±1.0%
Built in Mounting Pad	Yes

RDC2 controller designed for today’s sophisticated electronics manages both the generator set and Model RXT transfer switch functions
Accepts natural gas fuel pressure as low as 3.5 inches
Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
Meets 181 mph wind rating
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
