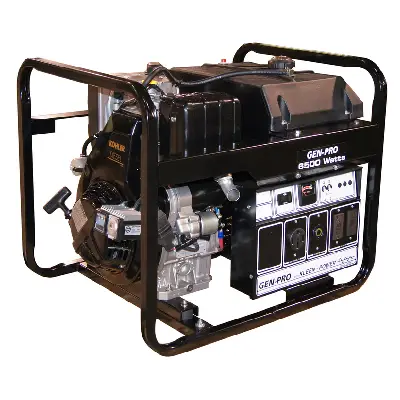

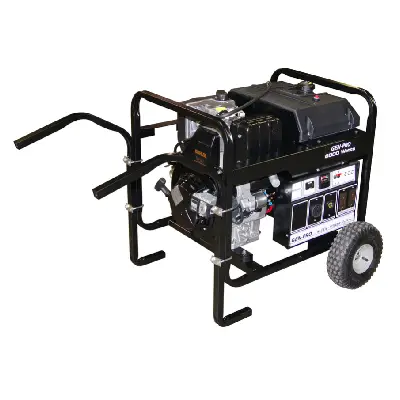

Image of Gillette 6kW Single Phase Portable Diesel Generator With Kleen-Power GPED-65EK

Sell

Gillette 6kW Single Phase Portable Diesel Generator With Kleen-Power GPED-65EK

Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.

Compare

Favorite

Added

questions? Call US

(866) 888 6111

SKU: 302648 Category: Portables

Accessories

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Additional information

Manufacturer	Gillette
MPN	GPED-65EK
Capability	Sell, Service
Cooling System	Air Cooled
Frequency Hz	60
Fuel Tank Run Time (hrs)	5.3
Fuel Type	Diesel
Manufacturers Website Link	https://gillettegenerators.com/generators/portable/1083-2/
Product Applications	Commercial / Industrial Power, Food Truck, Hurricane and Storms
Gen/Power Rating	Both
Housing	Open
Phase AC	1PH
Power Type	Conventional
Voltage VAC	120/240

Reviews

There are no reviews yet.

Be the first to review “Gillette 6kW Single Phase Portable Diesel Generator With Kleen-Power GPED-65EK”

Downloads

Gillette GPED-65EK Single Phase Portable Diesel Generator Spec Sheet

Tech Notes

GENERATOR MODEL	GPED-65EK
MAX KW POWER	6.5
KW POWER	5
AMPS 120 VAC	42
AMPS 240 VAC	21
GENERATOR REGULATION	5 % VOLTAGE REGULATION WITH MECHANICAL ENGINE GOVERNOR
FREQUENCY REGULATION	5 %, (3 HERTZ) FREQUENCY REGULATION ON ALL MODELS
ENGINE MODEL	KOHLER KD440 EPA/CARB TIER IV CERT. & 3 YEAR LIMITED WARRANTY
ENGINE START METHOD	12 VOLT ELECTRIC START WITH BUILT-IN BATTERY CHARGER
ENGINE HORSEPOWER	9 HP INTERMITTENT USE, 8 HP CONTINUOUS USE
SUPER QUIET MUFFLER	ALL MODELS : SPECIAL RESIDENTIAL STYLE MUFFLER FOR OPTIMUM SOUND REDUCTION
ENG. CU. CENTIMETER	401
ENGINE OIL SYSTEM	FULL PRESSURE W/ SPIN ON OIL FILTER
TOTAL ENGINE CYLINDERS	1
LOW OIL PROTECTION	STANDARD PROTECTION ON ALL MODELS
db(A) AT 7 METERS	85
FUEL TANK GAL. (LITERS)	4 GALLON (15 LITER) CROSSLINK POLYETHYLENE TANK
3/4 LOAD RUN TIME (HRS)	8 HOURS
FUEL USE, GAL/LTR/HR	<1/2 LOAD = .40 GPH> <3/4 LOAD = .52 GPH>
FUEL INJECTION SYSTEM	DIRECT
FULL PRESSURE OIL LUBE. WITH SPIN ON OIL FILTER	YES, PLUS 1.6 QT. OIL SUMP
ELECTRIC MOTOR STARTING	1 1/2 HP, CODE G ELECTRIC MOTOR
GENERATOR DESIGN	PORTABLE
MAGNETIC CIRCUIT BREAKER	STANDARD PROTECTION ON ALL 1 PHASE MODELS
VOLTMETER – HOUR METER	VOLTMETER AND HOUR METER IS INSTALLED ON ALL MODELS
120 VOLT RECEPTACLE	(4) NEMA 5-15R 120 VOLT, RECEPTACLES WITH GFCI PROTECTION (1) NEMA L5-30R, 30 AMP 3 WIRE TWIST-LOCK
COLD START GLO PLUGS	OPTIONAL
240 VOLT RECEPTACLE	(1) NEMA 14-50R, 20 AMP 4 WIRE
LENGTH, INCHES	28
WIDTH, INCHES	22
HEIGHT, INCHES	23
GEN-SET SHIP WEIGHT, LBS.	207
CU. FEET SHIP BOX	10
