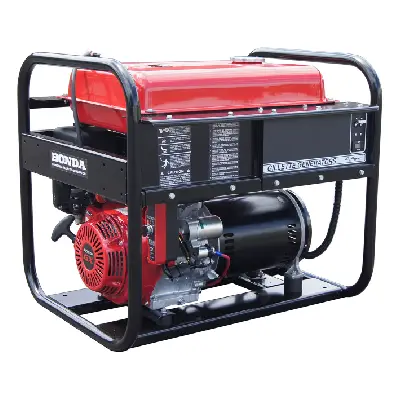

Gillette 7.5kW Three Phase Portable Generator GPE-7HEH-3
Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.
questions? Call US
(866) 888 6111
SKU: 302645
Category: Portables
Accessories
No products are linked on our website, but chances are we sell accessories for this product
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
Loading...
Additional information
Manufacturer | Gillette |
---|---|
MPN | GPE-7HEH-3 |
Capability | Sell, Service |
Cooling System | Air Cooled |
Frequency Hz | 60 |
Fuel Tank Run Time (hrs) | 5.6 |
Fuel Type | Gasoline |
Manufacturers Website Link | https://gillettegenerators.com/generators/portable/gpe-75eh-3/ |
Product Applications | Commercial / Industrial Power, Food Truck, Hurricane and Storms |
Gen/Power Rating | Prime / Continuous |
Housing | Open |
Phase AC | 3PH |
Power Type | Conventional |
Voltage VAC | Varies |
Be the first to review “Gillette 7.5kW Three Phase Portable Generator GPE-7HEH-3” Cancel reply
Tech Notes
GENERATOR MODEL | GPE-75EH |
MAX. KW @ 3 PH. | 6 |
PRIME KW @ 3 PH. | 5.5 |
PRIME AMPS @ 208 V. | 18 |
PRIME AMPS @ 240 V. | 16 |
PRIME AMPS @ 480 V. | 8 |
GENERATOR REGULATION | 5 % VOLTAGE REGULATION ON SINGLE PHASE GEN-SETS. |
FREQUENCY REGULATION | 5 %, (3 HERTZ) FREQUENCY REGULATION FROM NAME PLATE RATING |
“KLEEN-POWER”™ | ELECTRICAL WAVEFORM DISTORTION IS LIMITED TO JUST 6 % ON ALL GEN- PRO GEN-SETS |
ENGINE MODEL (WARRANTY) | HONDA GX390 O.H.V. (3 YEARS) |
ENGINE START METHOD | 12VDC ELECTRIC & ROPE RECOIL |
ENGINE HP @ 3600 RPM | 13 HP |
ENGINE DISPLACEMENT | 1 CYLINDER, 23.7 CU. IN. (390 CC) |
ENGINE AIR CLEANER | HEAVY DUTY, LOW PROFILE, DUAL ELEMENT FILTERS |
ENGINE FUEL TANK | 8 GAL. (30.2 L.) METAL FUEL TANK WITH GAUGE, TWIST-CAP, & SLOSH VALVE |
ENGINE OIL SYSTEM | FORCED SPLASH |
LOW OIL PROTECTION | AUTOMATIC ENGINE SHUTDOWN PROTECTION AT LOW OIL LEVEL |
db(A) AT 7 METERS | 78 |
3/4 LOAD RUN TIME (HRS) | 8.4 |
FUEL USE, GAL/LTR/HR | 0.95 / 3.56 |
MOTOR START POWER | 2 1/2 HP, CODE G ELECTRIC MOTOR |
CRANE PICK-UP HOOK | OPTIONAL EQUIPMENT : CENTRAL PICK-UP ON TOP OF GEN-SET |
2-WHEEL DOLLY KIT | OPTIONAL EQUIPMENT : COMPLETE WITH (2) HANDLES AND “NEVER GO FLAT” WHEELS |
MAINLINE CB | STANDARD 3 POLE MAG CIRCUIT BREAKER – 20A @ 208V & 240V & 10A @ 480V |
HOUR METER | RUN TIME HOURS, PLUS (3) MAINTENANCE ALERTS: 25 HOUR CHANGE OIL, 25 HOUR CHANGE OIL FILTER, 25 HOUR SERVICE AIR FILTER |
POWER TAKE OFF | POWER TAKE OFF 4 POSITION TERMINAL STRIP |
PROTECTIVE ROLL FRAME | RUGGED 1-1/4” ROUND ROLL FRAME, PROTECTING ENTIRE GEN-SET |
LENGTH, INCHES | 31 |
WIDTH, INCHES | 25 |
HEIGHT, INCHES | 27.5 |
SHIP WEIGHT, LBS. | 277 |
CU. FEET SHIP BOX | 20 |
