Cummins Quiet Connect Series Annunciator Wall Mount with Enclosure A045J201

Cummins Connect Series Annunciator Wall Mount with Enclosure. A045J201

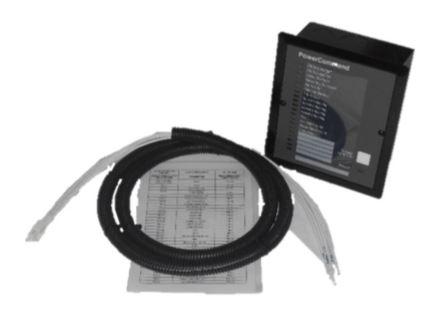

The Universal Annunciator Module provides visual and audible indication of up to 20 separate alarm or status conditions, based on discrete (relay) inputs or network inputs. Each LED can be controlled by either a discrete wire input or by a signal on the PCCnet network sent from an external device, such as a PCC1302, 2300, 3300 controls. Remote annunciator panels comply with NFPA 110 (Emergency and Standby Power Systems). The annunciator module can also be used for monitoring of transfer switch or other equipment status. In addition to the LEDs, the annunciator can control four custom relays based on signals received over the PCCnet. When one of the annunciators discrete inputs is activated, the annunciator will broadcast that information over the network. By taking advantage of the network, discrete inputs and custom relays, the annunciator can be used as expanded I/O for a PCC1302, 2300, 3300 controls. Enclosure version: Annunciator, wiring harness, cable tie, and window splice.
