The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
$36,428.31
(866) 888 6111
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
| Weight | 3409 lbs |
|---|---|
| Dimensions | 131 × 52 × 95 in |
| Product Applications | Commercial / Industrial Power, Residential |
| Capability | Install, Sell, Service |
| Cooling System | Liquid Cooled |
| Certification | UL |
| Manufacturer | Cummins |
| MPN | A063P967 |
| Frequency Hz | 60 |
| Fuel Tank Run Time (hrs) | 24 |
| Fuel Type | Diesel |
| Power Type | Conventional |
| Phase AC | 1PH |
| Watts | 80000 |
| kW | 80 |
| Voltage VAC | 120/240 |
| Gen/Power Rating | Standby / Intermittent |
| Housing | Closed |
| kVA | 80 |
| VA | 80000 |
Generator set specifications
Engine QSB5
Enclosures Sound Level 1 – Sandstone
Controller PowerCommand 1.1
Voltage – Phase 120/240 – 1 Phase
Operating temp. range -40 °F to +122 °F (-40 °C to +50 °C)
Circuit Breaker 100
Battery Charger Standard – 6A
Governor reg. class ISO 8528 Part 1 Class G3
Voltage regulation, no load to full load ± 1.0%
Random voltage variation ± 1.0%
Frequency regulation Isochronous
Random freq. variation ± 0.5%
Radio frequency emissions compliance FCC code Title 47 part 15 class A and B
Engine specifications
Engine QSB5
Displacement 2.20 L(134.1 in)
Cylinder block Cast iron, in-line
Battery capacity at ambient temperature of 0 °C (32 °F) 550 amps
Battery charging alternator 50 amps
Starting voltage 12-volt, negative ground
Lube oil filter type(s) Spin-on with relief valve
Rated speed 1800 rpm
Alternator specifications
Design Brushless, 4 pole, drip proof, revolving field
Stator 2/3 pitch
Rotor Direct coupled, flexible disc
Insulation system Class H per NEMA MG1-1.65
Standard temp. rise 120 ºC (248 °F) Standby
Exciter type Torque match (shunt) with PMG as option
Alternator cooling Direct drive centrifugal blower
AC waveform Total Harmonic
Distortion (THDV) < 5% no load to full linear load, < 3% for any single harmonic
Telephone Influence Factor (TIF) < 50 per NEMA MG1-22.43
Telephone Harmonic Factor (THF) < 3%

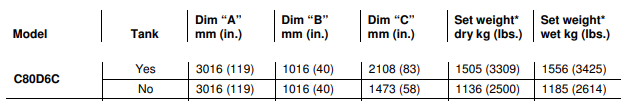

Dimensions and Weight
