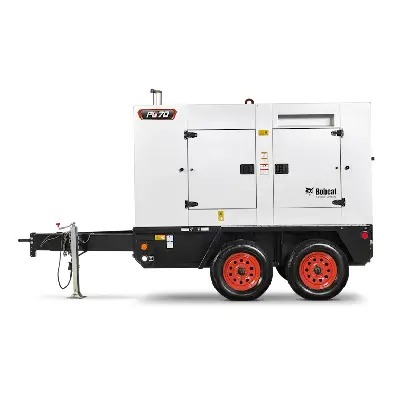

Designed with ease of serviceability in mind, the Bobcat® PG570 is compact, thoughtfully engineered and built to perform in tough conditions.
Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.
(866) 888 6111
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
Powered by a reliable Cummins X15 engine
Delivers 570 kVA (456 kW) with 50 Hz/60 Hz switchable frequency
20% smaller than comparable models on the market
Excellent motor starting capabilities with no minimum load
| Weight | 6000 lbs |
|---|---|
| Dimensions | 166.1 × 72.4 × 94.7 in |
| Manufacturer | Bobcat / Doosan |
| MPN | PG70 |
| Capability | Sell, Service |
| Cooling System | Liquid Cooled |
| Frequency Hz | 50/60 |
| Fuel Tank Run Time (hrs) | 33 |
| Fuel Type | Diesel |
| Manufacturers Website Link | https://www.bobcat.com/na/en/equipment/portable-power/portable-generators/pg70 |
| Product Applications | Commercial / Industrial Power, Hurricane and Storms |
| Gen/Power Rating | Prime / Continuous |
| Housing | Closed |
| kW | 56 |
| Phase AC | Varies |
| Power Type | Conventional |
| Product Actual Height (in) | 94.7 |
| Product Actual Length (in) | 166.1 |
| Product Actual Weight (lbs) | 6000 |
| Product Actual Width (in) | 72.4 |
| Voltage VAC | Varies |
| Fuel Tank Size (gal) | 172 |
| Rated Amps | 208 |
| Watts | 56000 |
| kVA | 70 |
| VA | 70000 |
PRIME POWER RATING
| @ 480V-3Ø, 0.8PF, 60Hz | 70 kVA (56 kW ), 84 Amps |
| @ 240V-3Ø, 0.8PF, 60Hz | 70 kVA (56 kW ), 168 Amps |
| @ 208V-3Ø, 0.8PF, 60Hz | 68 kVA (55 kW ), 190 Amps |
| @ 240V-1Ø, 1.0PF, 60Hz | 50 kVA (50 kW ), 209 Amps |
| @ 120V-1Ø, 1.0PF, 60Hz | 50 kVA (50 kW ), 209×2 Amps |
| Voltage Configuration | 3-Position Switch |
| Frequency Capability | 50Hz/60Hz Switchable |
ENGINE
| Engine Make / Model | Doosan D34 |
| Power Output @ 1800RPM – HP (kWm) | 85.8 (64) |
| Emissions Tier Level | Tier 4 Final |
| Fuel Tank Capacity – Gal (L) | 110 (416) |
| Runtime @ 100% Load – Hr | 25.0 |
DIMENSIONS WITH RUNNING GEAR
| Length – in (mm) | 163.8 (4161) |
| Width – in (mm) | 71.3 (1810) |
| Height – in (mm) | 93.3 (2371) |
| Weight (Ready to Run) – lb (kg) | 5550 (2518) |
| Sound Level @ 23 ft (7m) and 100% Load – dB(A) | 64 |
