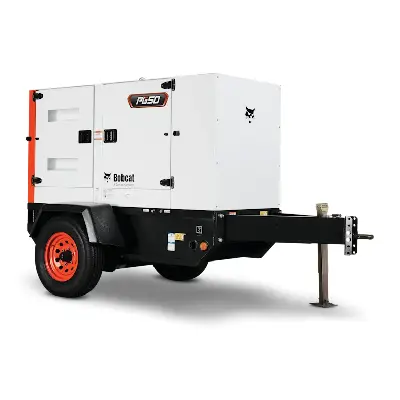

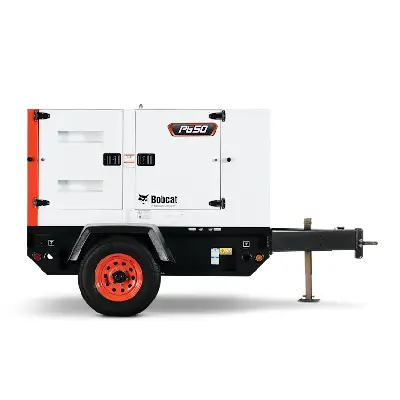

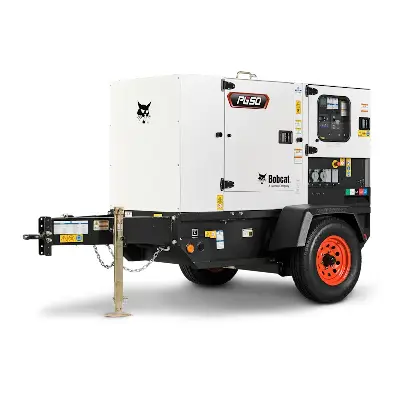

Bobcat 38kW Towable Diesel Generator PG50

The BobcatÂ® PG50 portable generator offers versatile power, long run times and simple serviceability packed inside a rugged yet compact enclosure for easy maneuverability.

Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.

Compare

Favorite

Added

questions? Call US

(866) 888 6111

SKU: 301982 Category: Towable

Accessories

No products are linked on our website, but chances are we sell accessories for this product

CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!

Description

The Bobcat PG50 portable generator offers versatile power, long run times and simple serviceability packed inside a rugged yet compact enclosure for easy maneuverability.

48 kVA (38 kW) power output at a quiet 64 dB(A)
Built tough to withstand harsh jobsite demands
Ideal for events, emergency backup, disaster relief and construction
Excellent motor starting capability, stable voltage regulation and fast transient response
Optional Intelligent Load Management System to prevent sludge buildup

Additional information

Weight	3930 lbs
Dimensions	130.5 × 68.3 × 76.6 in
Manufacturer	Bobcat / Doosan
MPN	PG50
Capability	Sell, Service
Cooling System	Liquid Cooled
Frequency Hz	50/60
Fuel Tank Run Time (hrs)	27
Fuel Type	Diesel
Manufacturers Website Link	https://www.bobcat.com/na/en/equipment/portable-power/portable-generators/pg50
Product Applications	Commercial / Industrial Power, Hurricane and Storms
Gen/Power Rating	Prime / Continuous
Housing	Closed
kW	38
Phase AC	Varies
Power Type	Conventional
Product Actual Height (in)	76.6
Product Actual Length (in)	130.5
Product Actual Weight (lbs)	3930
Product Actual Width (in)	68.3
Voltage VAC	Varies
Fuel Tank Size (gal)	102
Rated Amps	140
Watts	40000
kVA	50
VA	50000

Reviews

There are no reviews yet.

Be the first to review “Bobcat 38kW Towable Diesel Generator PG50”

Bobcat Towable Generator Product Brochure

Tech Notes

G50WDO-T4F Generator

PRIME POWER RATING

@ 480V-3Ø, 0.8PF, 60Hz	48 kVA (38 kW ), 58 Amps
@ 240V-3Ø, 0.8PF, 60Hz	48 kVA (38 kW ), 115 Amps
@ 208V-3Ø, 0.8PF, 60Hz	45 kVA (36 kW ), 125 Amps
@ 240V-1Ø, 1.0PF, 60Hz	33.6kVA (33.6 kW ), 140 Amps
@ 120V-1Ø, 1.0PF, 60Hz	33.6 kVA (33.6 kW ), 140×2 Amps
Voltage Configuration	3-Position Switch
Frequency Capability	50Hz/60Hz Switchable

ENGINE

Engine Make / Model	Doosan D24
Power Output @ 1800RPM – HP (kWm)	59.8 (44.6)
Emissions Tier Level	Tier 4 Final
Fuel Tank Capacity – Gal (L)	110 (416)
Runtime @ 100% Load – Hr	37.2

DIMENSIONS WITH RUNNING GEAR

Length – in (mm)	130.5 (3315)
Width – in (mm)	72.8 (1850)
Height – in (mm)	78.4 (1992)
Weight (Ready to Run) – lb (kg)	3870 (1755)
Sound Level @ 23 ft (7m) and 100% Load – dB(A)	64
