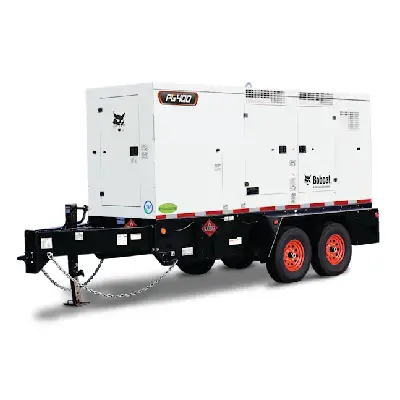

The PG400 is one of the most powerful towable generators on the market, yet its compact footprint allows for easy jobsite maneuverability.
Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.
(866) 888 6111
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
Powered by a reliable Cummins QSG12 engine
20-hour runtime at 100% load
Delivers 402 kVA (322 kW) at 79 dB(A)
| Weight | 15450 lbs |
|---|---|
| Dimensions | 241 × 83 × 115 in |
| Manufacturer | Bobcat / Doosan |
| MPN | PG400 |
| Capability | Sell, Service |
| Cooling System | Liquid Cooled |
| Frequency Hz | 50/60 |
| Fuel Tank Run Time (hrs) | 18 |
| Fuel Type | Diesel |
| Manufacturers Website Link | https://www.bobcat.com/na/en/equipment/portable-power/portable-generators/pg400 |
| Product Applications | Commercial / Industrial Power, Hurricane and Storms |
| Gen/Power Rating | Prime / Continuous |
| Housing | Closed |
| kW | 322 |
| Phase AC | Varies |
| Power Type | Conventional |
| Product Actual Height (in) | 115 |
| Product Actual Length (in) | 241 |
| Product Actual Weight (lbs) | 15450 |
| Product Actual Width (in) | 83 |
| Voltage VAC | Varies |
| Fuel Tank Size (gal) | 470 |
| Rated Amps | 1116 |
| Watts | 322000 |
| kVA | 400 |
| VA | 400000 |
PRIME POWER RATING
| @ 480V-3Ø, 0.8PF, 60Hz | 402 kVA (322 kW), 484 Amps |
| @ 240V-3Ø, 0.8PF, 60Hz | 402 kVA (322 kW), 967 Amps |
| @ 208V-3Ø, 0.8PF, 60Hz | 316 kVA (253 kW ), 877 Amps |
| @ 240V-1Ø, 1.0PF, 60Hz | 402 kVA (322 kW), 1116 Amps |
| @ 120V-1Ø, 1.0PF, 60Hz | 216 kVA (216 kW), 900 × 2 Amps |
| @ 400V-3Ø, 0.8PF, 50Hz | 387 kVA (310 kW), 559 Amps |
| Voltage Configuration | Link Board Panel |
| Frequency Capability | 50Hz/60Hz Switchable |
ENGINE
| Engine Make / Model | Cummins QSG12 |
| Displacement (L) | 11.8 |
| Number of Cylinders | 6 |
| Power Output @ 1800RPM – HP (kWm) | 475 (354) |
| Emissions Tier Level | Tier 4 Final |
| Aftertreatment Technology | DOC / DPF / SCR |
| Fuel Tank Capacity – Gal (L) | 470 (1780) |
| Diesel Exhaust Fluid (DEF) Capacity – Gal (L) | 46 (174) |
| Runtime @ 100% Load – Hr | 20.2 |
DIMENSIONS WITH RUNNING GEAR
| Length – in (mm) | 241 (6121) |
| Width – in (mm) | 83 (2109) |
| Height – in (mm) | 115 (2921) |
| Weight (Ready to Run) – lb (kg) | 15450 (7022) |
| Sound Level @ 23 ft (7m) and 100% Load – dB(A) | 79 |
