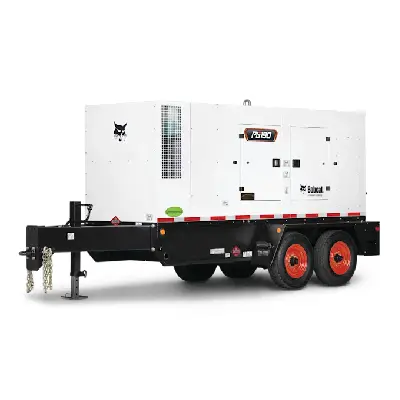

The diesel-powered Bobcat® PG190 portable generator (181 kVA/145 kW) from Bobcat delivers reliable power with industry-leading serviceability to maximize uptime and productivity.
Please use the Request Quote button above to add the item to the Quote Basket. Once you are finished adding items you can view the Quote Basket by clicking on the cart dropdown in the main menu at the top of the page.
(866) 888 6111
CALL US AT 866-888-6111 FOR A FULL LIST OF ACCESSORIES OFFERED FOR THIS PRODUCT!!
Powered by the rugged Cummins QSB7-G8 engine
181 kVA (145 kW) power output at just 69 dB(A)
Engineered for easy serviceability in the field
500-hour routine maintenance intervals
| Weight | 11377 lbs |
|---|---|
| Dimensions | 224 × 83.2 × 102.9 in |
| Manufacturer | Bobcat / Doosan |
| MPN | PG190 |
| Capability | Sell, Service |
| Cooling System | Liquid Cooled |
| Frequency Hz | 50/60 |
| Fuel Tank Run Time (hrs) | 30 |
| Fuel Type | Diesel |
| Manufacturers Website Link | https://www.bobcat.com/na/en/equipment/portable-power/portable-generators/pg190 |
| Product Applications | Commercial / Industrial Power, Hurricane and Storms |
| Gen/Power Rating | Prime / Continuous |
| Housing | Closed |
| kW | 145 |
| Phase AC | Varies |
| Power Type | Conventional |
| Product Actual Height (in) | 102.9 |
| Product Actual Length (in) | 224 |
| Product Actual Weight (lbs) | 11377 |
| Product Actual Width (in) | 83.2 |
| Voltage VAC | Varies |
| Fuel Tank Size (gal) | 368 |
| Rated Amps | 501 |
| Watts | 145000 |
| kVA | 190 |
| VA | 190000 |
PRIME POWER RATING
| @ 480V-3Ø, 0.8PF, 60Hz | 181 kVA (145 kW), 218 Amps |
| @ 240V-3Ø, 0.8PF, 60Hz | 181 kVA (145 kW), 434 Amps |
| @ 208V-3Ø, 0.8PF, 60Hz | 181 kVA (145 kW), 501 Amps |
| @ 240V-1Ø, 1.0PF, 60Hz | 110 kVA (110 kW), 458 Amps |
| @ 120V-1Ø, 1.0PF, 60Hz | 165 kVA (132 kW), 238 Amps |
| @ 400V-3Ø, 0.8PF, 50Hz | 132 kVA (106 kW ), 191 Amps |
| Voltage Configuration | 3-Position Switch |
| Frequency Capability | 50Hz/60Hz Switchable |
ENGINE
| Engine Make / Model | Cummins QSB7-G8 |
| Displacement (L) | 6.7 |
| Number of Cylinders | 6 |
| Power Output @ 1800RPM – HP (kWm) | 219 (163) |
| Emissions Tier Level | Tier 4 Final |
| Aftertreatment Technology | DOC / SCR |
| Fuel Tank Capacity – Gal (L) | 330 (1249) |
| Diesel Exhaust Fluid (DEF) Capacity – Gal (L) | 24.4 (92.4) |
| Runtime @ 100% Load – Hr | 31.7 |
DIMENSIONS WITH RUNNING GEAR
| Length – in (mm) | 224 (5689) |
| Width – in (mm) | 83.2 (2114) |
| Height – in (mm) | 102.9 (2615) |
| Weight (Ready to Run) – lb (kg) | 11377 (5172) |
| Sound Level @ 23 ft (7m) and 100% Load – dB(A) | 69 |
